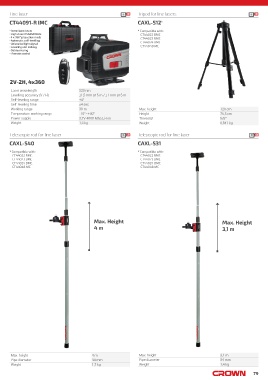

Page 79 - CROWN_catalog_CAN_October_2021-22

Line laser Tripod for line lasers
CT44091-R IMC CAXL-S12
• Green laser beam * Compatible with:
• High class OSRAM Diode CT44022 BMC
• 4 x 360° projection mode CT44023 BMC
• Automatic self-levelling
• Unlevelled light signal CT44024 BMC
• Levelling unit locking CT44048 MC
• Outdoor using
• Remote control

2V-2H, 4x360

Laser wavelength 520 nm
Levelling accuracy (V / H) ±1,5 mm at 5 m / ±1 mm at 5 m
Self-leveling range ±4°
Self-leveling time ≤4 sec
Working range 30 m Max. height 120 cm
Temperature working range -10°~+40° Height 76,5 cm
Power supply 3,7V 4000 Mha Li-Ion Thread Ø 5/8"
Weight 1,3 kg Weight 0,841 kg

Telescopic rod for line laser Telescopic rod for line laser
CAXL-S40 CAXL-S31

* Compatible with: * Compatible with:
CT44022 BMC CT44022 BMC
CT44023 BMC CT44023 BMC
CT44024 BMC CT44024 BMC
CT44048 MC CT44048 MC

Max. Height Max. Height
4 m 3,1 m

Max. height 4 m Max. height 3,1 m
Pipe diameter 34 mm Pipe diameter 34 mm
Weight 1,7 kg Weight 1,4 kg

79
