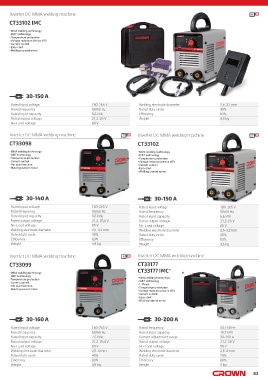

Page 83 - CROWN_catalog_CAN_October_2021-22

Inverter DC MMA welding machine
CT33102 IMC
• MMA welding technology
• IGBT technology
• Temperature protection
• Voltage reduction device VRD
• Current control
• Easy start
• Welding current meter

30-150 A

Rated input voltage 180-265 V Welding electrode diameter 2,5-3,2 mm
Rated frequency 50/60 Hz Rated duty circle 35%
Rated input capacity 6,6 kVA Efficiency 83%
Rated output voltage 21,2-26 V Weight 3,6 kg
No-Load voltage 80 V

Inverter DC MMA welding machine Inverter DC MMA welding machine
CT33098 CT33102

• MMA welding technology • MMA welding technology
• IGBT technology • IGBT technology
• Temperature protection • Temperature protection
• Current control • Voltage reduction device VRD
• Hot start function • Current control
• Welding current meter • Easy start
• Welding current meter

30-140 A 30-150 A

Rated input voltage 160-265 V Rated input voltage 180-265 V
Rated frequency 50/60 Hz Rated frequency 50/60 Hz
Rated input capacity 6,6 kVA Rated input capacity 6,6 kVA
Rated output voltage 21,2-25,6 V Rated output voltage 21,2-26 V
No-Load voltage 80 V No-Load voltage 80 V
Welding electrode diameter 2,5-3,2 mm Welding electrode diameter 2,5-3,2 mm
Rated duty cycle 40% Rated duty circle 35%
Efficiency 83% Efficiency 83%
Weight 4,9 kg Weight 3,6 kg

Inverter DC MMA welding machine Inverter DC MMA welding machine

CT33099 CT33177
CT33177 IMC*
• MMA welding technology *
• IGBT technology • MMA welding technology
• Temperature protection
• Current control • IGBT technology
• Hot start function • 1-Phase
• Temperature protection
• Welding current meter • Voltage reduction device VRD
• Current control
• Easy start
• Welding current meter

30-160 A 30-200 A
Rated input voltage 160-265 V Rated frequency 50 / 60 Hz
Rated frequency 50/60 Hz Rated input capacity 10,7 kVA
Rated input capacity 7,5 kVA Current adjustment range 30-200 A
Rated output voltage 21,2-26,4 V Rated output voltage 21,2-28 V
No-Load voltage 80 V No-Load voltage 80 V
Welding electrode diameter 2,5-4 mm Welding electrode diameter 2,5-4 mm
Rated duty cycle 40% Rated duty cycle 20%
Efficiency 83% Efficiency 80%
Weight 4,9 kg Weight 5 kg
