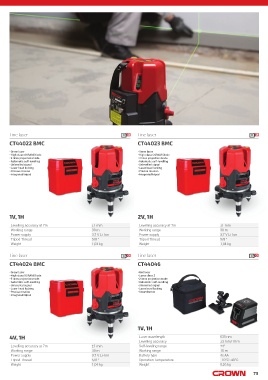

Page 75 - CROWN_catalog_CAN_October_2021-22

Line laser Line laser
CT44022 BMC CT44023 BMC

• Green laser • Green laser
• High class OSRAM Diode • High class OSRAM Diode
• 2 lines projection mode • 3 lines projection mode
• Automatic self-levelling • Automatic self-levelling
• Unlevelled signal • Unlevelled signal
• Laser head locking • Laser head locking
• Precise rotation • Precise rotation
• Integrated tripod • Integrated tripod

1V, 1H 2V, 1H
Levelling accuracy at 7m ±1 mm Levelling accuracy at 7m ±1 mm
Working range 30 m Working range 30 m
Power supply 3,7 V Li-Ion Power supply 3,7 V Li-Ion
Tripod Thread 5/8 " Tripod Thread 5/8 "
Weight 1,03 kg Weight 1,04 kg

Line laser Line laser
CT44024 BMC CT44046

• Green laser • Red laser
• High class OSRAM Diode • Laser class 2
• 5 lines projection mode • 2 lines projection mode
• Automatic self-levelling • Automatic self-levelling
• Unlevelled signal • Unlevelled signal
• Laser head locking • Laser head locking
• Precise rotation • Smart button
• Integrated tripod

1V, 1H

4V, 1H Laser wavelength 635 nm
Levelling accuracy ±3 mm/10 m
Levelling accuracy at 7m ±1 mm Self-leveling range ±4°
Working range 30 m Working range 15 m
Power supply 3,7 V Li-Ion Battery type 4x АА
Tripod Thread 5/8 " Operation Temperature -10°C~40°C
Weight 1,04 kg Weight 0,26 kg

75
