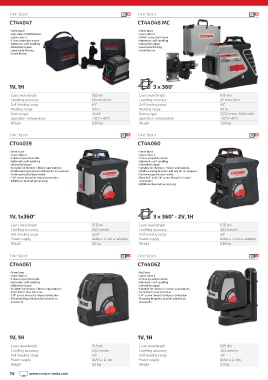

Page 76 - CROWN_catalog_CAN_October_2021-22

Line laser Line laser
CT44047 CT44048 MC
• Green laser • Green laser
• High class OSRAM Diode • Laser class 2
• Laser class 2 • 3x360° projection mode
• 2 lines projection mode • Automatic self-levelling
• Automatic self-levelling • Unlevelled signal
• Unlevelled signal • Laser head locking
• Laser head locking • Smart button
• Smart button

1V, 1H 3 x 360°
Laser wavelength 520 nm Laser wavelength 515 nm
Levelling accuracy ±3 mm/10 m Levelling accuracy ±2 mm/10 m
Self-leveling range ±4° Self-leveling range ±3°
Working range 30 m Working range 30 m
Battery type 4x АА Battery type 3,7V; Li-Ion, 4000 mAh
Operation Temperature -10°C~40°C Operation Temperature -10°C~40°C
Weight 0,26 kg Weight 1,03 kg

Line laser Line laser
CT44059 CT44060

• Green laser • Green laser
• Laser class 2 • Laser class 2
• 2 lines projection mode • 3 lines projection mode
• Automatic self-levelling • Automatic self-levelling
• Unlevelled signal • Unlevelled signal
• Suitable for Outdoor / Indoor applications • Suitable for Outdoor / Indoor applications
• Shield warning function and use for tilt purpose • Shield warning function and use for tilt purpose
• Continuos/pulse laser mode • Continuos/pulse laser mode
• 1/4” screw thread for tripod connection • Base 5/8” and 1/4” screw thread for tripod
• Additional bracket (accessory) connection
• Additional bracket (accessory)

1V, 1x360° 3 x 360° - 2V, 1H

Laser wavelength 515 nm Laser wavelength 515 nm
Levelling accuracy ±0,3 mm/m Levelling accuracy ±0,3 mm/m
Self-leveling range ±2.5° Self-leveling range ±3°
Power supply 4xAA or Li-lon or adapter Power supply 4xAA or Li-lon or adapter
Weight 0,6 kg Weight 0,88 kg

Line laser Line laser

CT44061 CT44062
• Green laser • Red laser
• Laser class 2 • Laser class 2
• 2 lines projection mode • 2 lines projection mode
• Automatic self-levelling • Automatic self-levelling
• Unlevelled signal • Unlevelled signal
• Suitable for Outdoor / Indoor applications • Suitable for Outdoor / Indoor applications
• Form front cross laser line • Form front cross laser line
• 1/4” screw thread for tripod connection • 1/4” screw thread for tripod connection
• Elevating Magnetic bracket avilable as • Elevating Magnetic bracket avilable as
accessory accessory

1V, 1H 1V, 1H
Laser wavelength 515 nm Laser wavelength 635 nm
Levelling accuracy ±0,2 mm/m Levelling accuracy ±0,2 mm/m
Self-leveling range ±3° Self-leveling range ±3°
Power supply 4xAA or Li-lon Power supply 4xAA or Li-lon
Weight 0,3 kg Weight 0,3 kg

76 www.crown-tools.com
