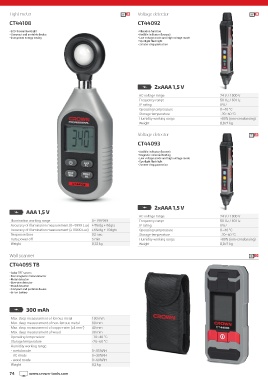

Page 74 - CROWN_catalog_CAN_October_2021-22

Light meter Voltage detector
CT44108 CT44092

• LCD Screen backlight • Vibration function
• Compact and portable device • Audible indicator (buzzer)
• Low power energy saving • Low voltage mode and high voltage mode
• Spotlight flashlight
• 2 meter drop protection

2xAAA 1,5 V
AC voltage range 24 V / 1000 V
Frequency range 50 Hz / 60 Hz
IP rating IP67
Operating temperature 0~40 °C
Storage temperature -20~50 °C
Humidity working range ≤80% (non-condensing)
Weight 0,072 kg

Voltage detector
CT44093

• Audible indicator (buzzer)
• Magnetic solenoid testing
• Low voltage mode and high voltage mode
• Spotlight flashlight
• 2 meter drop protection

2xAAA 1,5 V
AAA 1,5 V AC voltage range 24 V / 1000 V
.
Illumination working range 0~199 999 Frequency range 50 Hz / 60 Hz
Accuracy of Illumination measurement (0~9999 Lux) ±4%rdg + 8dgts IP rating IP67
Accuracy of Illumination measurement (≥10000 Lux) ±5%rdg + 10dgts Operating temperature 0~40 °C
Response time 0,5 sec Storage temperature -20~50 °C
Auto power off 5 min Humidity working range ≤80% (non-condensing)
Weight 0,12 kg Weight 0,072 kg

Wall scanner

CT44095 TB
• Color TFT screen
• Non magnetic metal detector
• Metal detector
• Live wire detector
• Wood detector
• Compact and portable device
• Li-Ion battery

300 mAh

Max. deep measurament of ferrous metal 100 mm
Max. deep measurament of non-ferrous metal 80 mm
Max. deep measurament of copper wire (≥4 mm ) 2 40 mm
Max. deep measurament of wood 38 mm
Operating temperature -10~40 °C
Storage temperature -20~60 °C
Humidity working range:
- metal mode 0~85%RH
- AC mode 0~30%RH
- wood mode 0~60%RH
Weight 0,2 kg

74 www.crown-tools.com
