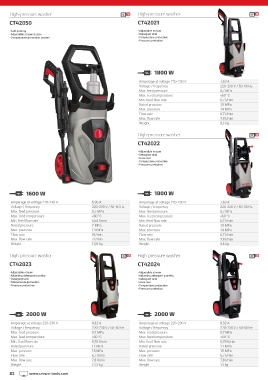

Page 82 - CROWN_catalog_CAN_October_2021-22

High-pressure washer High-pressure washer
CT42050 CT42021

• Self-priming • Adjustable stream
• Adjustable stream nozzle • Detergent tank
• Overpressure protection system • Temperature protection
• Pressure protection

1800 W
Amperage at voltage 220-230 V 7,63 A
Voltage / frequency 220-230 V / 50-60 Hz
Max. feed pressure 0,7 MPa
Max. feed temperature <60 °C
Min. feed flow rate 6,7 l/min
Rated pressure 10 MPa
Max. pressure 14 MPa
Flow rate 6,7 l/min
Max. flow rate 7,8 l/min
Weight 9,1 kg

High-pressure washer
CT42022

• Adjustable stream
• Detergent tank
• Hose reel
• Temperature protection
• Pressure protection

1600 W 1800 W

Amperage at voltage 220-230 V 6.95 A Amperage at voltage 220-230 V 7,63 A
Voltage / frequency 220-230 V / 50-60 Hz Voltage / frequency 220-230 V / 50-60 Hz
Max. feed pressure 0,7 MPa Max. feed pressure 0,7 MPa
Max. feed temperature <60 °C Max. feed temperature <60 °C
Min. feed flow rate 5,54 l/min Min. feed flow rate 6,7 l/min
Rated pressure 7 MPa Rated pressure 10 MPa
Max. pressure 13 MPa Max. pressure 14 MPa
Flow rate 6 l/min Flow rate 6,7 l/min
Max. flow rate 7 l/min Max. flow rate 7,8 l/min
Weight 10,6 kg Weight 9,6 kg

High-pressure washer High-pressure washer
CT42023 CT42024

• Adjustable stream • Adjustable stream
• Adjusting detergent quantity • Adjusting detergent quantity
• Detergent tank • Detergent tank
• Temperature protection • Hose reel
• Pressure protection • Temperature protection
• Pressure protection

2000 W 2000 W

Amperage at voltage 220-230 V 8,32 A Amperage at voltage 220-230 V 8,32 A
Voltage / frequency 220-230 V / 50-60 Hz Voltage / frequency 220-230 V / 50-60 Hz
Max. feed pressure 0,7 MPa Max. feed pressure 0,7 MPa
Max. feed temperature <60 °C Max. feed temperature <60 °C
Min. feed flow rate 6,78 l/min Min. feed flow rate 6,78 l/min
Rated pressure 11 MPa Rated pressure 11 MPa
Max. pressure 15 MPa Max. pressure 15 MPa
Flow rate 6,7 l/min Flow rate 6,7 l/min
Max. flow rate 7,8 l/min Max. flow rate 7,8 l/min
Weight 12,3 kg Weight 13 kg

82 www.crown-tools.com
