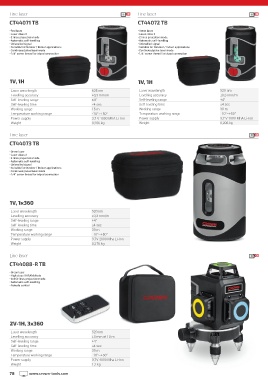

Page 78 - CROWN_catalog_CAN_October_2021-22

Line laser Line laser
CT44071 TB CT44072 TB
• Red laser • Green laser
• Laser class 2 • Laser class 2
• 2 lines projection mode • 2 lines projection mode
• Automatic self-levelling • Automatic self-levelling
• Unlevelled signal • Unlevelled signal
• Suitable for Outdoor / Indoor applications • Suitable for Outdoor / Indoor applications
• Continuos/pulse laser mode • Continuos/pulse laser mode
• 1/4” screw thread for tripod connection • 1/4” screw thread for tripod connection

1V, 1H 1V, 1H

Laser wavelength 635 nm Laser wavelength 520 nm
Levelling accuracy ±0,3 mm/m Levelling accuracy ±0,3 mm/m
Self-leveling range ±4° Self-leveling range ±4°
Self-leveling time ≤4 sec Self-leveling time ≤4 sec
Working range 15 m Working range 30 m
Temperature working range -10°~+50° Temperature working range -10°~+50°
Power supply 3,7 V 1000 MhA Li-Ion Power supply 3,7 V 1000 MhA Li-Ion
Weight 0,206 kg Weight 0,206 kg

Line laser
CT44073 TB

• Green laser
• Laser class 2
• 2 lines projection mode
• Automatic self-levelling
• Unlevelled signal
• Suitable for Outdoor / Indoor applications
• Continuos/pulse laser mode
• 1/4” screw thread for tripod connection

1V, 1x360
Laser wavelength 520 nm
Levelling accuracy ±0,3 mm/m
Self-leveling range ±4°
Self-leveling time ≤4 sec
Working range 30 m
Temperature working range -10°~+50°
Power supply 3,7V 2000 Mha Li-Ion
Weight 0,276 kg

Line laser
CT44088-R TB

• Green laser
• High class OARAM diode
• 3x360 lines projection mode
• Automatic self-levelling
• Remote control

2V-1H, 3x360

Laser wavelength 520 nm
Levelling accuracy ±3 mm at 10 m
Self-leveling range ±4°
Self-leveling time ≤4 sec
Working range 30 m
Temperature working range -10°~+50°
Power supply 3,7V 4000 Mha Li-Ion
Weight 1,2 kg
