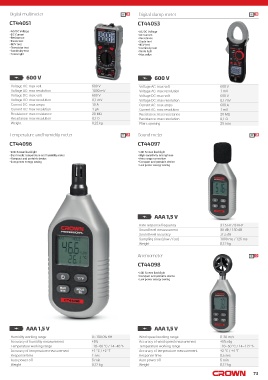

Page 73 - CROWN_catalog_CAN_October_2021-22

Digital multimeter Digital clamp meter
CT44051 CT44053

• AC/DC Voltage • AC/DC Voltage
• DC Current • AC Current
• Resistance • Resistance
• Diode test • Diode test
• NCV test • NCV test
• Transistor test • Continuity test
• Continuity test • Torch light
• Torch light • Max value

600 V 600 V

Voltage AC: max volt 600 V Voltage AC: max volt 600 V
Voltage AC: max resolution 1000 mV Voltage AC: max resolution 1 mV
Voltage DC: max volt 600 V Voltage DC: max volt 600 V
Voltage DC: max resolution 0,1 mV Voltage DC: max resolution 0,1 mV
Current DC: max amps 10 A Current AC: max amps 600 A
Current DC: max resolution 1 µA Current AC: max resolution 1 mA
Resistance: max resistance 20 MΩ Resistance: max resistance 20 MΩ
Resistance: max resolution 0,1 Ω Resistance: max resolution 0,1 Ω
Weight 0,22 kg Pliers opening 25 mm

Temperature and humidity meter Sound meter
CT44096 CT44097

• LCD Screen backlight • LCD Screen backlight
• Dual mode: temperature and humidity meter • High sensitivity microphone
• Compact and portable device • Auto range convertion
• Low power energy saving • Compact and portable device
• Low power energy saving

AAA 1,5 V

Rate response frequency 31.5 Hz / 8 KHz
Sound level measurament 30 dB / 130 dB
Sound level accuracy ±1,5 dB
Sampling time (slow / fast) 1000 ms / 125 ms
Weight 0,12 kg

Anemometer

CT44098
• LCD Screen backlight
• Compact and portable device
• Low power energy saving

AAA 1,5 V AAA 1,5 V

Humidity working range 0~100.0% RH Wind speed working range 0-30 m/s
Accuracy of humidity measurement ±5% Accuracy of wind speed measurement ±5% rdg
Temperature working range -10~60 °C / 14~40 °F Temperature working range -10~50 °C / 14~122 °F
Accuracy of temperature measurement ±1 °C / ±2 °F Accuracy of temperature measurement ±2 °C / ±4 °F
Response time 1 sec Response time 0,5 sec
Auto power off 5 min Auto power off 5 min
Weight 0,12 kg Weight 0,12 kg

73
