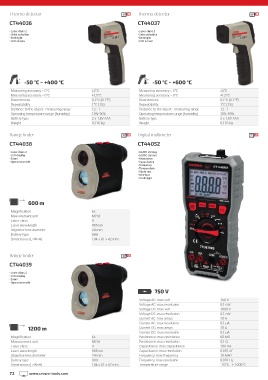

Page 72 - CROWN_catalog_CAN_October_2021-22

Thermo detector Thermo detector
CT44036 CT44037

• Laser class 2 • Laser class 2
• Units selection • Units selection
• Backlight • Backlight
• LCD screen • LCD screen

-50 °C ~ +400 °C -50 °C ~ +600 °C

Measuring accuracy < 0°C ±3°C Measuring accuracy < 0°C ±3°C
Measuring accuracy > 0°C ±1,5°C Measuring accuracy > 0°C ±1,5°C
Discreteness 0,1°С (0.1°F) Discreteness 0,1°С (0.1°F)
Repeatability 1°C (1%) Repeatability 1°C (1%)
Distance to the object : measuring range 12 : 1 Distance to the object : measuring range 12 : 1
Operating temperature range (humidity) 10%-90% Operating temperature range (humidity) 10%-90%
Battery type 2 x 1,5V ААА Battery type 2 x 1,5V ААА
Weight 0,116 kg Weight 0,116 kg

Range finder Digital multimeter
CT44038 CT44052

• Laser class 2 • AC/DC Voltage
• LCD display • AC/DC Current
• Zoom • Resistance
• Operation mode • Capacitance
• Frequency
• Temperature
• Diode test
• NCV test
• Torch light

600 m
Magnification 6x
Measurement unit M/Yd
Laser class II
Laser wavelength 905 nm
Objective lens diameter 24 mm
Battery type AAA
Dimensions (L×W×H) 104 x 81 x 42 mm

Range finder

CT44039
• Laser class 2
• LCD display
• Zoom
• Operation mode
750 V

Voltage AC: max volt 750 V
Voltage AC: max resolution 0,1 mV
Voltage DC: max volt 1000 V
Voltage DC: max resolution 0,1 mV
Current AC: max amps 20 A
Current AC: max resolution 0,1 µA
1200 m Current DC: max amps 20 A
Current DC: max resolution 0,1 µA
Magnification 6x Resistance: max resistance 60 MΩ
Measurement unit M/Yd Resistance: max resolution 0,1 Ω
Laser class II Capacitance: max capacitance 100 mF
Laser wavelength 905 nm Capacitance: max resolution 0,001 nF
Objective lens diameter 24 mm Frequency: max frequency 10 MHz
Battery type AAA Frequency: max resolution 0,001 Hz
Dimensions (L×W×H) 104 x 81 x 42 mm Temperature range -20°C - + 1000°C

72 www.crown-tools.com
