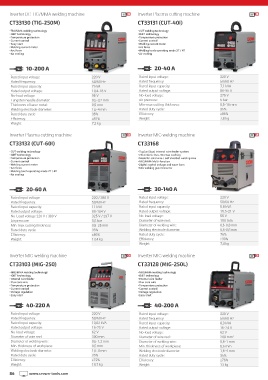

Page 86 - CROWN_catalog_CAN_October_2021-22

Inverter DC TIG/MMA welding machine Inverter Plasma cutting machine
CT33130 (TIG-250M) CT33131 (CUT-40I)
• TIG/MMA welding technology • CUT welding technology
• IGBT technology • IGBT technology
• Temperature protection • Temperature protection
• Current control • Current control
• Easy start • Welding current meter
• Welding current meter • Arc force
• Arc force • Welding torch operating mode 2T / 4T
• Air cooling • Air cooling

10-200 A 20-40 A
Rated input voltage: 220 V Rated input voltage: 220 V
Rated frequency: 50/60 Hz Rated frequency: 50/60 Hz
Rated input capacity: 7 kVA Rated input capacity: 7,1 kVA
Rated output voltage: 10,4-18 V Rated output voltage: 88-96 V
No-load voltage: 95 V No-load voltage: 275 V
Tungsten needle diameter: 0,5-3,2 mm Air pressure: 5 bar
Thickness of base metal: 0,5 mm Min-max cutting thickness: 0,5-16 mm
Welding electrode diameter: 1,6-4 mm Rated duty cycle: 35%
Rated duty cycle 35% Efficiency: ≥86%
Efficiency: ≥81% Weight: 7,8 kg
Weight: 7,2 kg

Inverter Plasma cutting machine Inverter MIG welding machine
CT33132 (CUT-60I) CT33168

• CUT welding technology • 1kg (or 5kgs) Internal wire feeder system
• IGBT technology • 2 functions: Gas / No Gas working
• Temperature protection • Made for solid wire / self shielded welding wire
• Current control • MIG/MMA Multi-function
• Welding current meter • Digital control voltage and wave form
• Arc force • MIG welding gun connector
• Welding torch operating mode 2T / 4T
• Air cooling

20-60 A 30-140 A
Rated input voltage: 220 / 380 V Rated input voltage: 220 V
Rated frequency: 50/60 Hz Rated frequency: 50/60 Hz
Rated input capacity: 11 kVA Rated input capacity: 5.8 kVA
Rated output voltage: 88-104 V Rated output voltage: 15.5-21 V
No-Load voltage 220 V / 380 V 325 V / 297 V No-load voltage: 55 V
Air pressure: 5,5 bar Diameter of wire reel: 100 mm
Min-max cutting thickness: 0,5-25 mm Diameter of welding wire: 0,6-0,8 mm
Rated duty cycle: 35% Welding electrode diameter: 0,6-0,8 mm
Efficiency: ≥86% Rated duty cycle: 76%
Weight: 13,4 kg Efficiency: ≥30%
Weight: 7,4 kg

Inverter MIG welding machine Inverter MIG welding machine
CT33103 (MIG-250) CT33128 (MIG-250L)

• MIG/MMA welding technology • MIG/MMA welding technology
• IGBT technology • IGBT technology
• Internal wire feeder • Internal wire feeder
• Flux core wire • Flux core wire
• Temperature protection • Temperature protection
• Current control • Current control
• Voltage regulation • Voltage regulation
• Easy start • Easy start
40-220 A 40-200 A
Rated input voltage: 220 V Rated input voltage: 220 V
Rated frequency: 50/60 Hz Rated frequency: 50/60 Hz
Rated input capacity: 13,02 kVA Rated input capacity: 8,3 kVA
Rated output voltage: 16-25 V Rated output voltage: 16-24 V
No-load voltage: 62 V No-load voltage: 62 V
Diameter of wire reel: 300 mm Diameter of wire reel: 200 mm"
Diameter of welding wire: 0,6-1,2 mm Diameter of welding wire: 0,6-1 mm
Min. thickness of workpiece: 0,5 mm Min. thickness of workpiece: 0,6 mm
Welding electrode diameter: 1,6-4 mm Welding electrode diameter: 1,6-4 mm
Rated duty cycle: 35% Rated duty cycle: 35%
Efficiency: ≥72% Efficiency: ≥76%
Weight: 18,7 kg Weight: 13 kg
