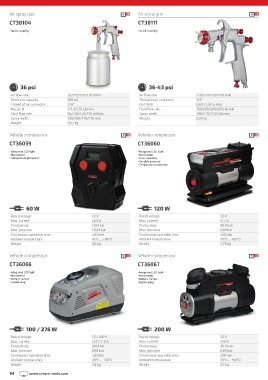

Page 94 - CROWN_catalog_CAN_October_2021-22

Air spray gun Air spray gun
CT38104 CT38111
• Quick coupling • Quick coupling

36 psi 36-43 psi
Air flow rate 75/225/225/170 l/min Air flow rate 270/270/220/220 l/min
Reservoir capacity 600 ml Thread of air connector 1/4"
Thread of air connector 1/4" Nozzle Ø 0,8/1/1,3/1,5 mm
Nozzle Ø 1/1,3/1,5/1,8 mm Fluid flow rate 150/200/200/250 ml/min
Fluid flow rate 85/150/170/210 ml/min Spray width 190/220/210/240 mm
Spray width 120/160/175/170 mm Weight 0,33 kg
Weight 0,57 kg

Vehicle compressor Vehicle compressor
CT36059 CT36060

• Integrated LED light • Integrated LED light
• Manometer • Manometer
• Temperature protection • Units selection
• Variable pressure
• Temperature protection

60 W 120 W

Rated voltage 12 V Rated voltage 12 V
Max. current <6.5 A Max. current <12 A
Productivity 13 l/min Productivity 30 l/min
Max. pressure 10,34 bar Max. pressure 6,89 bar
Continuous operation time <20 min Continuous operation time <20 min
Ambient temperature -6°C ... +49°C Ambient temperature 20°C ... +50°C
Weight 0,5 kg Weight 1,75 kg

Vehicle compressor Vehicle compressor
CT36066 CT36067

• Integrated LED light • Integrated LED light
• Manometer • Manometer
• Battery clamps • Battery clamps
• Lighter plug • Lighter plug

100 / 276 W 200 W

Rated voltage 12 / 230 V Rated voltage 12 V
Max. current <15 / 1-2 A Max. current <20 A
Productivity 30 l/min Productivity 40 l/min
Max. pressure 6,89 bar Max. pressure 6,89 bar
Continuous operation time <20 min Continuous operation time <20 min
Ambient temperature 20°C ... +50°C Ambient temperature 20°C ... +50°C
Weight 2,4 kg Weight 2,1 kg

94 www.crown-tools.com
