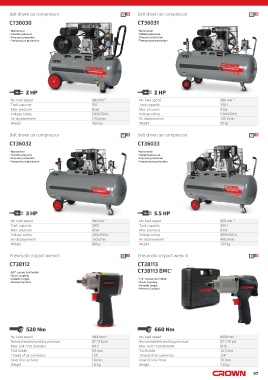

Page 97 - CROWN_catalog_CAN_October_2021-22
P. 97
Belt driven air compressor Belt driven air compressor
CT36030 CT36031
• Manometer • Manometer
• Variable pressure • Variable pressure
• Pressure protection • Pressure protection
• Temperature protection • Temperature protection
2 HP 2 HP
No-load speed 980 minˉ¹ No-load speed 980 minˉ¹
Tank capacity 50 l Tank capacity 100 l
Max. pressure 8 bar Max. pressure 8 bar
Voltage rating 230V/50Hz Voltage rating 230V/50Hz
Air displacement 120 l/min Air displacement 120 l/min
Weight 42,5 kg Weight 55 kg
Belt driven air compressor Belt driven air compressor
CT36032 CT36033
• Manometer • Manometer
• Variable pressure • Variable pressure
• Pressure protection • Pressure protection
• Temperature protection • Temperature protection
3 HP 5.5 HP
No-load speed 980 minˉ¹ No-load speed 980 minˉ¹
Tank capacity 200 l Tank capacity 200 l
Max. pressure 8 bar Max. pressure 8 bar
Voltage rating 230V/50Hz Voltage rating 380V/50Hz
Air displacement 250 l/min Air displacement 480 l/min
Weight 88 kg Weight 134 kg
Pneumatic impact wrench Pneumatic impact wrench
CT38112 CT38113
CT38113 BMC
• 3/8" square tool holder
• Quick coupling
• Variable torque • 1/2" square tool holder
• Reverse function • Quick coupling
• Variable torque
• Reverse function
520 Nm 660 Nm
No-load speed 9800 minˉ¹ No-load speed 8000 minˉ¹
Recommended working pressure 87-116 psi Recommended working pressure 87-116 psi
Max. bolt / nut diameter M12 Max. bolt / nut diameter M16
Tool holder 9,5 mm Tool holder 12,7 mm
Thread of air connector 1/4" Thread of air connector 1/4"
Inner Ø of air hose 10 mm Inner Ø of air hose 10 mm
Weight 1,6 kg Weight 2,6 kg
97
