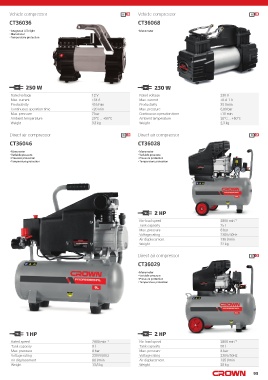

Page 95 - CROWN_catalog_CAN_October_2021-22

Vehicle compressor Vehicle compressor
CT36036 CT36068
• Integrated LED light • Manometer
• Manometer
• Temperature protection

250 W 230 W
Rated voltage 12 V Rated voltage 230 V
Max. current <18 A Max. current <0.4-1 A
Productivity 45 l/min Productivity 35 l/min
Continuous operation time <20 min Max. pressure 6,89 bar
Max. pressure 7 bar Continuous operation time <10 min
Ambient temperature 20°C ... +50°C Ambient temperature 20°C ... +50°C
Weight 3,3 kg Weight 2,3 kg

Direct air compressor Direct air compressor
CT36046 CT36028

• Manometer • Manometer
• Variable pressure • Variable pressure
• Pressure protection • Pressure protection
• Temperature protection • Temperature protection

2 HP

No-load speed 2800 minˉ¹
Tank capacity 25 l
Max. pressure 8 bar
Voltage rating 230V/50Hz
Air displacement 135 l/min
Weight 22 kg

Direct air compressor
CT36029

• Manometer
• Variable pressure
• Pressure protection
• Temperature protection

1 HP 2 HP
Rated speed 2800 minˉ¹ No-load speed 2800 minˉ¹
Tank capacity 9 l Tank capacity 50 l
Max. pressure 8 bar Max. pressure 8 bar
Voltage rating 230V/50Hz Voltage rating 230V/50Hz
Air displacement 80 l/min Air displacement 135 l/min
Weight 13,8 kg Weight 28 kg

95
