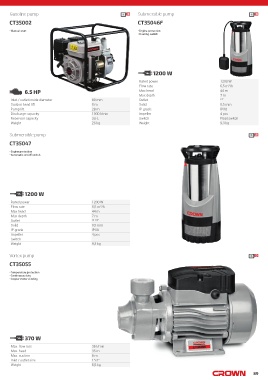

Page 89 - CROWN_catalog_CAN_October_2021-22

Gasoline pump Submersible pump
CT35002 CT35046F
• Manual start • Engine protection
• Floating switch

1200 W
Rated power 1200 W
Flow rate 6,5 m³/h
6.5 HP Max head 44 m
Max depth 7 m
Inlet / outlet inside diameter 80 mm Outlet G1”
Suction head lift 8 m Solid 0,5 mm
Pump lift 28 m IP grade IPx8
Discharge capacity 1000 l/min Impeller 4 pcs
Reservoir capacity 3,6 L Switch Float switch
Weight 26 kg Weight 9,3 kg

Submersible pump
CT35047

• Engine protection
• Automatic on/off switch

1200 W

Rated power 1200 W
Flow rate 6,5 m³/h
Max head 44 m
Max depth 7 m
Outlet G1-1/2”
Solid 0,5 mm
IP grade IPx8
Impeller 4 pcs
Switch -
Weight 9,3 kg

Vortex pump
CT35055

• Temperature protection
• Continuous duty
• Copper motor winding

370 W
Max. flow rate 35 l/min
Max. head 35 m
Max. suction 8 m
Inlet / outlet size 1''x1''
Weight 5,5 kg

89
