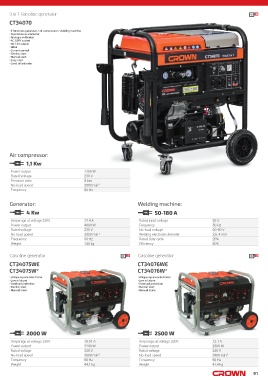

Page 91 - CROWN_catalog_CAN_October_2021-22

3 in 1 Gasoline generator
CT34070
• 3 functions generator / air compressor / welding machine
• Synchronous alternator
• Analogic voltmeter
• AC 230V socket
• DC 12V output
• MMA
• Current control
• Electric start
• Manual start
• Easy start
• Level oil indicator

Air compressor:

1,1 Kw
Power output 1100 W
Rated Voltage 230 V
Pressure ratio 8 bar
No-load speed 2880 min -1
Frequency 50 Hz

Generator: Welding machine:
4 Kw 50-180 A

Amperage at voltage 230V 17.4 A Rated input voltage 26 V
Power output 4000 W Frequency 50 Hz
Rated voltage 230 V No-load voltage 60-80 V
No-load speed 3000 min -1 Welding electrode diameter 2,6-4 mm
Frequency 50 Hz Rated duty cycle 20%

Weight 140 kg Efficiency 80%
Gasoline generator Gasoline generator
CT34075WE CT34076WE
CT34075W* CT34076W*
• Unique square tube frame • Unique square tube frame
• Low oil alarm • Low oil alarm
• Overload protection • Overload protection
• Electric start • Electric start
• Manual start* • Manual start*

2000 W 2500 W
Amperage at voltage 230V 10.01 A Amperage at voltage 230V 12.1 A
Power output 2200 W Power output 2800 W
Rated voltage 230 V Rated voltage 230 V
No-load speed 3000 min -1 No-load speed 3000 min -1
Frequency 50 Hz Frequency 50 Hz

Weight 44,1 kg Weight 47,4 kg
91
