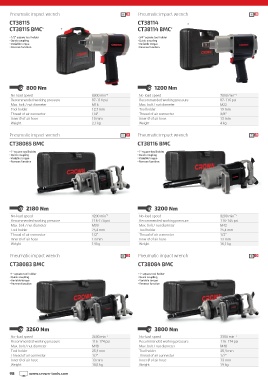

Page 98 - CROWN_catalog_CAN_October_2021-22

Pneumatic impact wrench Pneumatic impact wrench
CT38115 CT38114
CT38115 BMC CT38114 BMC
• 1/2" square tool holder • 3/4" square tool holder
• Quick coupling • Quick coupling
• Variable torque • Variable torque
• Reverse function • Reverse function

800 Nm 1200 Nm
No-load speed 8000 minˉ¹ No-load speed 7000 minˉ¹
Recommended working pressure 87-116 psi Recommended working pressure 87-116 psi
Max. bolt / nut diameter M16 Max. bolt / nut diameter M22
Tool holder 12,7 mm Tool holder 19 mm
Thread of air connector 1/4" Thread of air connector 3/8"
Inner Ø of air hose 10 mm Inner Ø of air hose 13 mm
Weight 2,1 kg Weight 4 kg

Pneumatic impact wrench Pneumatic impact wrench
CT38085 BMC CT38116 BMC

• 1" square tool holder • 1" square tool holder
• Quick coupling • Quick coupling
• Variable torque • Variable torque
• Reverse function • Reverse function

2180 Nm 3200 Nm

No-load speed 4200 minˉ¹ No-load speed 3200 minˉ¹
Recommended working pressure 116-174 psi Recommended working pressure 116-145 psi
Max. bolt / nut diameter M39 Max. bolt / nut diameter M42
Tool holder 25,4 mm Tool holder 25,4 mm
Thread of air connector 1/2" Thread of air connector 1/2"
Inner Ø of air hose 13 mm Inner Ø of air hose 13 mm
Weight 14 kg Weight 16,1 kg

Pneumatic impact wrench Pneumatic impact wrench
CT38083 BMC CT38084 BMC

• 1" square tool holder • 1" square tool holder
• Quick coupling • Quick coupling
• Variable torque • Variable torque
• Reverse function • Reverse function

3260 Nm 3800 Nm

No-load speed 3600 minˉ¹ No-load speed 3300 minˉ¹
Recommended working pressure 116-174 psi Recommended working pressure 116-174 psi
Max. bolt / nut diameter M48 Max. bolt / nut diameter M48
Tool holder 25,4 mm Tool holder 25,4 mm
Thread of air connector 1/2" Thread of air connector 1/2"
Inner Ø of air hose 13 mm Inner Ø of air hose 13 mm
Weight 18,5 kg Weight 19 kg

98 www.crown-tools.com
