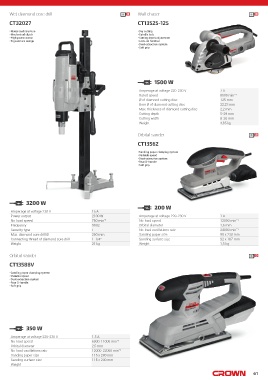

Page 61 - CROWN_catalog_CAN_October_2021-22

Wet diamond core drill Wall chaser
CT32027 CT13525-125

• Water seal structure • Dry cutting
• Mechanical clutch • Spindle lock
• High power motor • Cutting depth adjustment
• Ergonomics design • Lock-on function
• Dust extraction system
• Soft grip

1500 W

Amperage at voltage 220-230 V 7 A
Rated speed 8500 minˉ¹
Ø of diamond cutting disc 125 mm
Bore Ø of diamond cutting disc 22,23 mm
Мax. thickness of diamond cutting disc 2,2 mm
Cutting depth 5-29 mm
Cutting width 8-30 mm
Weight 4,85 kg

Orbital sander
CT13562

• Sanding paper clamping system
• Variable speed
• Dust extraction system
• Rear D-handle
• Soft grip

3200 W
200 W
Amperage at voltage 230 V 15 A
Power output 2100 W Amperage at voltage 220-230 V 1 A
No-load speed 750 minˉ¹ No-load speed 12000 minˉ¹
Frequency 50Hz Orbital diameter 1,6 mm
Security type I No-load oscillations rate 24000 minˉ¹
Max. diamond core drill Ø 260 mm Sanding paper size 90 x 230 mm
Connecting thread of diamond core drill 1-1/4" Sanding surface size 92 x 187 mm
Weight 21 kg Weight 1,5 kg

Orbital sander

CT13588V
• Sanding paper clamping system
• Variable speed
• Dust extraction system
• Rear D-handle
• Soft grip

350 W

Amperage at voltage 220-230 V 1.5 A
No-load speed 6000-11000 minˉ¹
Orbital diameter 2,5 mm
No-load oscillations rate 12000-22000 minˉ¹
Sanding paper size 115 x 280 mm
Sanding surface size 115 x 230 mm
Weight
