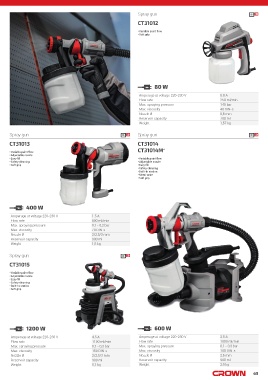

Page 65 - CROWN_catalog_CAN_October_2021-22

Spray gun
CT31012

• Variable paint flow
• Soft grip

80 W
Amperage at voltage 220-230 V 0.8 A
Flow rate 250 ml/min
Max. spraying pressure 140 bar
Max. viscosity 40 DIN-s
Nozzle Ø 0,8 mm
Reservoir capacity 700 ml
Weight 1,57 kg

Spray gun Spray gun
CT31013 CT31014
CT31014M
• Variable paint flow
• Adjustable nozzle
• Easy fill • Variable paint flow
• Safety cleaning • Adjustable nozzle
• Soft grip • Easy fill
• Safety cleaning
• Built-in station
• Metal tank*
• Soft grip

400 W

Amperage at voltage 220-230 V 1.5 A
Flow rate 800 ml/min
Max. spraying pressure 0,1 - 0,2 bar
Max. viscosity 70 DIN-s
Nozzle Ø 2/2,5/3 mm
Reservoir capacity 900 ml
Weight 1,5 kg

Spray gun

CT31015
• Variable paint flow
• Adjustable nozzle
• Easy fill
• Safety cleaning
• Built-in station
• Soft grip

1200 W 600 W

Amperage at voltage 220-230 V 4.5 A Amperage at voltage 220-230 V 2.5 A
Flow rate 1100 ml/min Flow rate 1000 ml/min
Max. spraying pressure 0,1 - 0,3 bar Max. spraying pressure 0,1 - 0,3 bar
Max. viscosity 150 DIN-s Max. viscosity 100 DIN-s
Nozzle Ø 2/2,5/3 mm Nozzle Ø 2,5 mm
Reservoir capacity 900 ml Reservoir capacity 900 ml
Weight 5,1 kg Weight 2,9 kg

65
