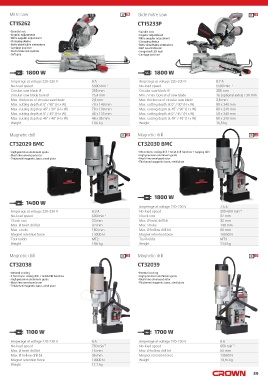

Page 59 - CROWN_catalog_CAN_October_2021-22

Mitre saw Slide mitre saw
CT15262 CT15233P

• Spindle lock • Spindle lock
• Angular adjustment • Angular adjustment
• Mitre angular adjustment • Mitre angular adjustment
• Clamping device • Clamping device
• Both-sided table extensions • Both-sided table extensions
• Carriage position • Kerf laser indicator
• Dust extraction system • Integrated LED light
• Soft grip • Carriage position

1800 W 1800 W
Amperage at voltage 220-230 V 8 A Amperage at voltage 220-230 V 8.7 A
No-load speed 5500 minˉ¹ No-load speed 5500 minˉ¹
Circular saw blade Ø 255 mm Circular saw blade Ø 255 mm
Circular saw blade bore Ø 25,4 mm Min. / max. bore Ø of saw blade 16 (optional extra) / 30 mm
Max. thickness of circular saw blade 2,8 mm Max. thickness of circular saw blade 2,8 mm
Max. cutting depth at 0° / 90° (H x W) 70 x 140 mm Max. cutting depth at 0° / 90° (H x W) 80 x 340 mm
Max. cutting depth at 45° / 90° (H x W) 70 x 100 mm Max. cutting depth at 45° / 90° (H x W) 80 x 240 mm
Max. cutting depth at 0° / 45° (H x W) 48 x 135 mm Max. cutting depth at 0° / 45° (H x W) 50 x 340 mm
Max. cutting depth at 45° / 45° (H x W) 48 x 95 mm Max. cutting depth at 45° / 45° (H x W) 50 x 240 mm
Weight 10,6 kg Weight 16,5 kg

Magnetic drill Magnetic drill
CT32029 BMC CT32030 BMC

• High precision aluminum guide • 3 functions: coring drill + twist drill function + tapping drill
• Mesh line enveloped rotor • High precision aluminum guide
• Thickened magnetic base, steel plate • Mesh line enveloped rotor
• Thickened magnetic base, steel plate

1800 W
1400 W
Amperage at voltage 220-230 V 7.5 A
Amperage at voltage 220-230 V 6.3 A No-load speed 200-600 minˉ¹
No-load speed 600 minˉ¹ Chuck size 32 mm
Chuck size 23 mm Max. Ø twist drill bit 32 mm
Max. Ø twist drill bit 32 mm Max. stroke 190 mm
Max. stroke 180 mm Max. Ø hollow drill bit 60 mm
Magnet retention force 13000 N Magnet retention force 18000 N
Tool holder MT2 Tool holder MT3
Weight 19,6 kg Weight 23,6 kg

Magnetic drill Magnetic drill

CT32038 CT32039
• Internal cooling • Internal cooling
• 2 functions: coring drill + twist drill function • High precision aluminum guide
• High precision aluminum guide • Mesh line enveloped rotor
• Mesh line enveloped rotor • Thickened magnetic base, steel plate
• Thickened magnetic base, steel plate

1100 W 1700 W

Amperage at voltage 220-230 V 6 A Amperage at voltage 220-230 V 8 A
No-load speed 750 minˉ¹ No-load speed 650 minˉ¹
Max. Ø twist drill bit 16 mm Max. Ø hollow drill bit 50 mm
Max. Ø hollow drill bit 35 mm Magnet retention force 13500 N
Magnet retention force 10000 N Weight 19,55 kg
Weight 11,1 kg
