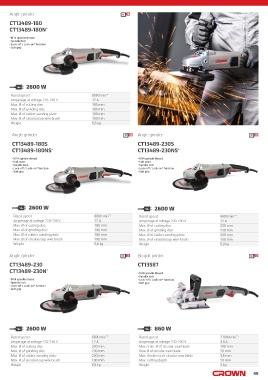

Page 49 - CROWN_catalog_CAN_October_2021-22

Angle grinder
CT13489-180
CT13489-180N
• M14 spindle thread
• Spindle lock
• Lock-off / Lock-on * function
• Soft grip

2600 W
Rated speed 8500 minˉ¹
Amperage at voltage 220-230 V 12 A
Max. Ø of cutting disc 180 mm
Max. Ø of grinding disc 180 mm
Max. Ø of rubber sanding plate 180 mm
Max. Ø of circular/cup wire brush 100 mm
Weight 5,6 kg

Angle grinder Angle grinder
CT13489-180S CT13489-230S
CT13489-180NS CT13489-230NS

• M14 spindle thread • M14 spindle thread
• Soft start • Soft start
• Spindle lock • Spindle lock
• Lock-off / Lock-on * function • Lock-off / Lock-on * function
• Soft grip • Soft grip

2600 W 2600 W

Rated speed 8500 minˉ¹ Rated speed 6500 minˉ¹
Amperage at voltage 220-230 V 12 A Amperage at voltage 220-230 V 12 A
Max. Ø of cutting disc 180 mm Max. Ø of cutting disc 230 mm
Max. Ø of grinding disc 180 mm Max. Ø of grinding disc 230 mm
Max. Ø of rubber sanding plate 180 mm Max. Ø of rubber sanding plate 230 mm
Max. Ø of circular/cup wire brush 100 mm Max. Ø of circular/cup wire brush 100 mm
Weight 5,6 kg Weight 5,9 kg

Angle grinder Bisquit jointer

CT13489-230 CT13587
CT13489-230N • M10 spindle thread
• Spindle lock
• M14 spindle thread • Lock-off / Lock-on * function
• Spindle lock • Soft grip
• Lock-off / Lock-on * function
• Soft grip

2600 W 860 W

Rated speed 6500 minˉ¹ Rated speed 11000 minˉ¹
Amperage at voltage 220-230 V 12 A Amperage at voltage 220-230 V 3.8 A
Max. Ø of cutting disc 230 mm Max / min. Ø of circular saw blade 100 mm
Max. Ø of grinding disc 230 mm Bore Ø of circular saw blade 20 mm
Max. Ø of rubber sanding plate 230 mm Max. thickness of circular saw blade 3,8 mm
Max. Ø of circular/cup wire brush 100 mm Max. cutting depth 20 mm
Weight 5,9 kg Weight 3 kg

49
