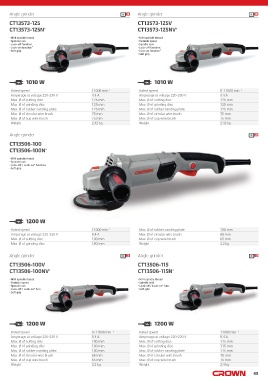

Page 45 - CROWN_catalog_CAN_October_2021-22

Angle grinder Angle grinder
CT13573-125 CT13573-125V
CT13573-125N CT13573-125NV
• M14 spindle thread • M14 spindle thread
• Spindle lock • Variable speed
• Lock-off function • Spindle lock
• Lock-on function * • Lock-off function
• Soft grip • Lock-on function *
• Soft grip

1010 W 1010 W

Rated speed 11000 minˉ¹ Rated speed 0-11000 minˉ¹
Amperage at voltage 220-230 V 4.4 A Amperage at voltage 220-230 V 4.4 A
Max. Ø of cutting disc 125 mm Max. Ø of cutting disc 125 mm
Max. Ø of grinding disc 125 mm Max. Ø of grinding disc 125 mm
Max. Ø of rubber sanding plate 125 mm Max. Ø of rubber sanding plate 125 mm
Max. Ø of circular wire brush 75 mm Max. Ø of circular wire brush 75 mm
Max. Ø of cup wire brush 75 mm Max. Ø of cup wire brush 75 mm
Weight 2,42 kg Weight 2,42 kg

Angle grinder
CT13506-100
CT13506-100N

• M10 spindle thread
• Spindle lock
• Lock-off / Lock-on * function
• Soft grip

1200 W
Rated speed 11000 minˉ¹ Max. Ø of rubber sanding plate 100 mm
Amperage at voltage 220-230 V 5.4 A Max. Ø of circular wire brush 65 mm
Max. Ø of cutting disc 100 mm Max. Ø of cup wire brush 65 mm
Max. Ø of grinding disc 100 mm Weight 2,2 kg

Angle grinder Angle grinder

CT13506-100V CT13506-115
CT13506-100NV CT13506-115N

• M10 spindle thread • M14 spindle thread
• Variable speed • Spindle lock
• Spindle lock • Lock-off / Lock-on * function
• Lock-off / Lock-on * function • Soft grip
• Soft grip

1200 W 1200 W

Rated speed 0-11000 minˉ¹ Rated speed 11000 minˉ¹
Amperage at voltage 220-230 V 5.4 A Amperage at voltage 220-230 V 5.4 A
Max. Ø of cutting disc 100 mm Max. Ø of cutting disc 115 mm
Max. Ø of grinding disc 100 mm Max. Ø of grinding disc 115 mm
Max. Ø of rubber sanding plate 100 mm Max. Ø of rubber sanding plate 115 mm
Max. Ø of circular wire brush 65 mm Max. Ø of circular wire brush 75 mm
Max. Ø of cup wire brush 65 mm Max. Ø of cup wire brush 75 mm
Weight 2,2 kg Weight 2,4 kg

45
