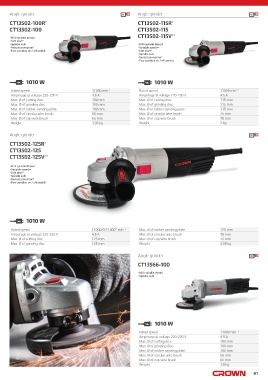

Page 41 - CROWN_catalog_CAN_October_2021-22

Angle grinder Angle grinder
CT13502-100R CT13502-115R
CT13502-100 CT13502-115
CT13502-115V
• M10 spindle thread
• Soft start *
• Spindle lock • M14 spindle thread
• Restart protection * • Variable speed**
• Two-position on / off switch • Soft start *
• Spindle lock
• Restart protection *
• Two-position on / off switch

1010 W 1010 W

Rated speed 11000 minˉ¹ Rated speed 11000 minˉ¹
Amperage at voltage 220-230 V 4.5 A Amperage at voltage 220-230 V 4.5 A
Max. Ø of cutting disc 100 mm Max. Ø of cutting disc 115 mm
Max. Ø of grinding disc 100 mm Max. Ø of grinding disc 115 mm
Max. Ø of rubber sanding plate 100 mm Max. Ø of rubber sanding plate 115 mm
Max. Ø of circular wire brush 65 mm Max. Ø of circular wire brush 75 mm
Max. Ø of cup wire brush 65 mm Max. Ø of cup wire brush 75 mm
Weight 1,95 kg Weight 2 kg

Angle grinder
CT13502-125R
CT13502-125
CT13502-125V

• M14 spindle thread
• Variable speed**
• Soft start *
• Spindle lock
• Restart protection *
• Two-position on / off switch

1010 W
Rated speed 11000/0-11000 minˉ¹ Max. Ø of rubber sanding plate 125 mm
**
Amperage at voltage 220-230 V 4.5 A Max. Ø of circular wire brush 75 mm
Max. Ø of cutting disc 125 mm Max. Ø of cup wire brush 75 mm
Max. Ø of grinding disc 125 mm Weight 2,05 kg

Angle grinder

CT13566-100
• M10 spindle thread
• Spindle lock

1010 W

Rated speed 11000 minˉ¹
Amperage at voltage 220-230 V 4.5 A
Max. Ø of cutting disc 100 mm
Max. Ø of grinding disc 100 mm
Max. Ø of rubber sanding plate 100 mm
Max. Ø of circular wire brush 65 mm
Max. Ø of cup wire brush 65 mm
Weight 1,8 kg

41
