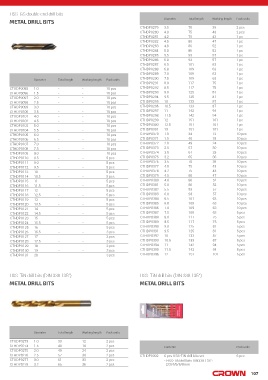

Page 107 - CROWN_catalog_CAN_October_2021-22

HSS-GS double end drill bits
Diameter Total length Working length Pack units
METAL DRILL BITS
CTHDP0279 3.5 70 39 2 pcs
CTHDP0280 4.0 75 43 2 pcs
CTHDP0281 4.2 75 43 1 pc
CTHDP0282 4.5 80 47 1 pc
CTHDP0283 4.8 86 52 1 pc
CTHDP0284 5.0 86 52 1 pc
CTHDP0285 5.5 93 57 1 pc
CTHDP0286 6.0 93 57 1 pc
CTHDP0287 6.5 101 63 1 pc
CTHDP0288 6.8 109 63 1 pc
CTHDP0289 7.0 109 63 1 pc
Diameter Total length Working length Pack units CTHDP0290 7.5 109 63 1 pc
CTHDP0291 8.0 117 75 1 pc
CTHDP0095 1.0 - - 10 pcs CTHDP0292 8.5 117 75 1 pc
CTHDP0096 1.5 - - 10 pcs CTHDP0293 9.0 125 81 1 pc
CTHDP0097 2.0 - - 10 pcs CTHDP0294 9.5 125 81 1 pc
CTHDP0098 2.5 - - 10 pcs CTHDP0295 10 133 87 1 pc
CTHDP0099 3.0 - - 10 pcs CTHDP0296 10.5 133 87 1 pc
CTHDP0100 3.5 - - 10 pcs CTHDP0297 11 142 94 1 pc
CTHDP0101 4.0 - - 10 pcs CTHDP0298 11.5 142 94 1 pc
CTHDP0102 4.5 - - 10 pcs CTHDP0299 12 151 101 1 pc
CTHDP0103 5.0 - - 10 pcs CTHDP0300 12.5 151 101 1 pc
CTHDP0104 5.5 - - 10 pcs CTHDP0301 13 151 101 1 pc
CTHDP0105 6.0 - - 10 pcs CTHDP0370 1.0 34 12 10 pcs
CTHDP0106 6.5 - - 10 pcs CTHDP0371 1.5 40 18 10 pcs
CTHDP0107 7.0 - - 10 pcs CTHDP0372 2.0 49 24 10 pcs
CTHDP0108 7.5 - - 10 pcs CTHDP0373 2.5 57 30 10 pcs
CTHDP0109 8.0 - - 10 pcs CTHDP0374 3.0 61 33 10 pcs
CTHDP0110 8.5 - - 5 pcs CTHDP0375 3.2 65 36 10 pcs
CTHDP0111 9.0 - - 5 pcs CTHDP0376 3.5 70 39 10 pcs
CTHDP0112 9.5 - - 5 pcs CTHDP0377 4.0 75 43 10 pcs
CTHDP0113 10 - - 5 pcs CTHDP0378 4.2 75 43 10 pcs
CTHDP0114 10.5 - - 5 pcs CTHDP0379 4.5 80 47 10 pcs
CTHDP0115 11 - - 5 pcs CTHDP0380 4.8 86 52 10 pcs
CTHDP0116 11.5 - - 5 pcs CTHDP0381 5.0 86 52 10 pcs
CTHDP0117 12 - - 5 pcs CTHDP0382 5.5 93 57 10 pcs
CTHDP0118 12.5 - - 5 pcs CTHDP0383 6.0 93 57 10 pcs
CTHDP0119 13 - - 5 pcs CTHDP0384 6.5 101 63 10 pcs
CTHDP0120 13.5 - - 5 pcs CTHDP0385 6.8 109 63 10 pcs
CTHDP0121 14 - - 5 pcs CTHDP0386 7.0 109 63 10 pcs
CTHDP0122 14.5 - - 5 pcs CTHDP0387 7.5 109 63 5 pcs
CTHDP0123 15 - - 5 pcs CTHDP0388 8.0 117 75 5 pcs
CTHDP0124 15.5 - - 5 pcs CTHDP0389 8.5 117 75 5 pcs
CTHDP0125 16 - - 5 pcs CTHDP0390 9.0 125 81 5 pcs
CTHDP0126 16.5 - - 3 pcs CTHDP0391 9.5 125 81 5 pcs
CTHDP0127 17 - - 3 pcs CTHDP0392 10 133 87 5 pcs
CTHDP0128 17.5 - - 3 pcs CTHDP0393 10.5 133 87 5 pcs
CTHDP0129 18 - - 3 pcs CTHDP0394 11 142 94 5 pcs
CTHDP0130 19 - - 3 pcs CTHDP0395 11.5 142 94 5 pcs
CTHDP0131 20 - - 3 pcs CTHDP0396 12 151 101 5 pcs

HSS-TiN drill bits (DIN 338 135°) HSS-TiN drill bits (DIN 338 135°)
METAL DRILL BITS METAL DRILL BITS

Diameter Total length Working length Pack units
CTHDP0273 1.0 33 12 2 pcs
CTHDP0274 1.5 40 18 2 pcs Contents Pack units
CTHDP0275 2.0 49 24 2 pcs
CTHDP0276 2.5 57 30 2 pcs CTHDP0302 6 pcs HSS-TiN drill bits set 6 pcs
CTHDP0277 3.0 61 33 2 pcs - HSS-TiN drill bits DIN338 135°:
CTHDP0278 3.2 65 36 2 pcs 2/3/4/5/6/8mm

107
