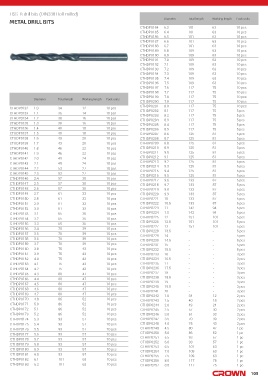

Page 105 - CROWN_catalog_CAN_October_2021-22

HSS-R drill bits (DIN338 Roll-milled)
Diameter Total length Working length Pack units
METAL DRILL BITS
CTHDP0184 6.3 101 63 10 pcs
CTHDP0185 6.4 101 63 10 pcs
CTHDP0186 6.5 101 63 10 pcs
CTHDP0187 6.6 101 63 10 pcs
CTHDP0188 6.7 101 63 10 pcs
CTHDP0189 6.8 109 63 10 pcs
CTHDP0190 6.9 109 63 10 pcs
CTHDP0191 7.0 109 63 10 pcs
CTHDP0192 7.1 109 63 10 pcs
CTHDP0193 7.2 109 63 10 pcs
CTHDP0194 7.3 109 63 10 pcs
CTHDP0195 7.4 109 63 10 pcs
CTHDP0196 7.5 109 63 10 pcs
CTHDP0197 7.6 117 75 10 pcs
CTHDP0198 7.7 117 75 10 pcs
CTHDP0199 7.8 117 75 10 pcs
Diameter Total length Working length Pack units
CTHDP0200 7.9 117 75 10 pcs
CTHDP0201 8.0 117 75 10 pcs
CTHDP0132 1.0 34 12 10 pcs
CTHDP0133 1.1 36 14 10 pcs CTHDP0202 8.1 117 75 5 pcs
8.2
CTHDP0203
5 pcs
75
117
CTHDP0134 1.2 38 16 10 pcs CTHDP0204 8.3 117 75 5 pcs
CTHDP0135 1.3 38 16 10 pcs CTHDP0205 8.4 117 75 5 pcs
CTHDP0136 1.4 40 18 10 pcs CTHDP0206 8.5 117 75 5 pcs
CTHDP0137 1.5 40 18 10 pcs CTHDP0207 8.6 125 81 5 pcs
CTHDP0138 1.6 43 20 10 pcs CTHDP0208 8.7 125 81 5 pcs
CTHDP0139 1.7 43 20 10 pcs CTHDP0209 8.8 125 81 5 pcs
CTHDP0140 1.8 46 22 10 pcs CTHDP0210 8.9 125 81 5 pcs
CTHDP0141 1.9 46 22 10 pcs CTHDP0211 9.0 125 81 5 pcs
CTHDP0142 2.0 49 24 10 pcs CTHDP0212 9.1 125 81 5 pcs
CTHDP0143 2.1 49 24 10 pcs CTHDP0213 9.2 125 81 5 pcs
CTHDP0144 2.2 53 27 10 pcs CTHDP0214 9.3 125 81 5 pcs
125
81
5 pcs
CTHDP0215
9.4
CTHDP0145 2.3 53 27 10 pcs CTHDP0216 9.5 125 81 5 pcs
CTHDP0146 2.4 57 30 10 pcs CTHDP0217 9.6 133 87 5 pcs
CTHDP0147 2.5 57 30 10 pcs CTHDP0218 9.7 133 87 5 pcs
CTHDP0148 2.6 57 30 10 pcs CTHDP0219 9.8 133 87 5 pcs
CTHDP0149 2.7 61 33 10 pcs CTHDP0220 9.9 133 87 5 pcs
CTHDP0150 2.8 61 33 10 pcs CTHDP0221 10 133 87 5 pcs
CTHDP0151 2.9 61 33 10 pcs CTHDP0222 10.5 133 87 5 pcs
CTHDP0152 3.0 61 33 10 pcs CTHDP0223 11 142 94 5 pcs
CTHDP0153 3.1 65 36 10 pcs CTHDP0224 1.5 142 94 5 pcs
CTHDP0154 3.2 65 36 10 pcs CTHDP0225 12 151 101 5 pcs
CTHDP0155 3.3 65 36 10 pcs CTHDP0226 12.5 151 101 5 pcs
CTHDP0156 3.4 70 39 10 pcs CTHDP0227 13 151 101 5 pcs
CTHDP0228
5 pcs
-
-
13.5
CTHDP0157 3.5 70 39 10 pcs CTHDP0229 14 - - 5 pcs
CTHDP0158 3.6 70 39 10 pcs CTHDP0230 14.5 - - 5 pcs
CTHDP0159 3.7 70 39 10 pcs CTHDP0231 15 - - 5 pcs
CTHDP0160 3.8 75 43 10 pcs CTHDP0232 15.5 - - 5 pcs
CTHDP0161 3.9 75 43 10 pcs CTHDP0233 16 - - 3 pcs
CTHDP0162 4.0 75 43 10 pcs CTHDP0234 16.5 - - 3 pcs
CTHDP0163 4.1 75 43 10 pcs CTHDP0235 17 - - 3 pcs
CTHDP0164 4.2 75 43 10 pcs CTHDP0236 17.5 - - 3 pcs
CTHDP0165 4.3 80 47 10 pcs CTHDP0237 18 - - 3 pcs
CTHDP0166 4.4 80 47 10 pcs CTHDP0238 18.5 - - 3 pcs
CTHDP0167 4.5 80 47 10 pcs CTHDP0239 19 - - 3 pcs
CTHDP0168 4.6 80 47 10 pcs CTHDP0240 19.5 - - - - 3 pcs
CTHDP0241
3 pcs
20
CTHDP0169 4.7 80 47 10 pcs CTHDP0242 1.0 34 12 2 pcs
CTHDP0170 4.8 86 52 10 pcs CTHDP0243 1.5 40 18 2 pcs
CTHDP0171 5.0 86 52 10 pcs CTHDP0244 2.0 49 24 2 pcs
CTHDP0172 5.1 86 52 10 pcs CTHDP0245 2.5 57 30 2 pcs
CTHDP0173 5.2 86 52 10 pcs CTHDP0246 3.0 61 33 2 pcs
CTHDP0174 5.3 93 57 10 pcs CTHDP0247 3.5 70 39 2 pcs
CTHDP0175 5.4 93 57 10 pcs CTHDP0248 4.0 75 43 2 pcs
CTHDP0176 5.5 93 57 10 pcs CTHDP0249 4.5 80 47 1 pc
CTHDP0177 5.6 93 57 10 pcs CTHDP0250 5.0 86 52 1 pc
CTHDP0178 5.7 93 57 10 pcs CTHDP0251 5.5 93 57 1 pc
CTHDP0179 5.8 93 57 10 pcs CTHDP0252 6.0 93 57 1 pc
63
1 pc
CTHDP0253
101
6.5
CTHDP0180 5.9 93 57 10 pcs CTHDP0254 7.0 109 63 1 pc
CTHDP0181 6.0 93 57 10 pcs CTHDP0255 7.5 109 63 1 pc
CTHDP0182 6.1 101 63 10 pcs CTHDP0256 8.0 117 75 1 pc
CTHDP0183 6.2 101 63 10 pcs CTHDP0257 8.5 117 75 1 pc
