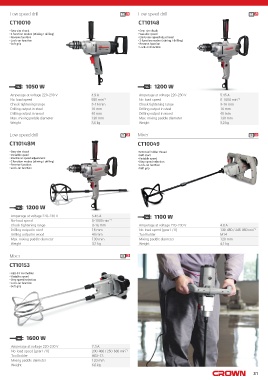

Page 31 - CROWN_catalog_CAN_October_2021-22

Low speed drill Low speed drill
CT10010 CT10148
• Gear rim chuck • Gear rim chuck
• 2 function modes (stirring / drilling) • Variable speed
• Reverse function • Electronic speed adjustment
• Lock-on function • 2 function modes (stirring / drilling)
• Soft grip • Reverse function
• Lock-on function

1050 W 1200 W
Amperage at voltage 220-230 V 4.9 A Amperage at voltage 220-230 V 5.45 A
No-load speed 550 minˉ¹ No-load speed 0-1000 minˉ¹
Chuck tightening range 3-16 mm Chuck tightening range 3-16 mm
Drilling output in steel 16 mm Drilling output in steel 16 mm
Drilling output in wood 40 mm Drilling output in wood 40 mm
Max. mixing paddle diameter 130 mm Max. mixing paddle diameter 130 mm
Weight 3,6 kg Weight 3,2 kg

Low speed drill Mixer
CT10148M CT10049

• Gear rim chuck • M14 tool holder thread
• Variable speed • Soft start
• Electronic speed adjustment • Variable speed
• 2 function modes (stirring / drilling) • Step speed selection
• Reverse function • Lock-on function
• Lock-on function • Soft grip

1200 W

Amperage at voltage 220-230 V 5.45 A 1100 W
No-load speed 0-1000 minˉ¹
Chuck tightening range 3-16 mm Amperage at voltage 220-230 V 4.8 A
Drilling output in steel 16 mm No-load speed (gear I / II) 130-450 / 245-850 minˉ¹
Drilling output in wood 40 mm Tool holder M14
Max. mixing paddle diameter 130 mm Mixing paddle diameter 120 mm
Weight 3,2 kg Weight 4,1 kg

Mixer

CT10153
• HEX-13 tool holder
• Variable speed
• Step speed selection
• Lock-on function
• Soft grip

1600 W

Amperage at voltage 220-230 V 7.3 A
No-load speed (gear I / II) 200-480 / 250-680 minˉ¹
Tool holder HEx-13
Mixing paddle diameter 120 mm
Weight 6,6 kg
31
