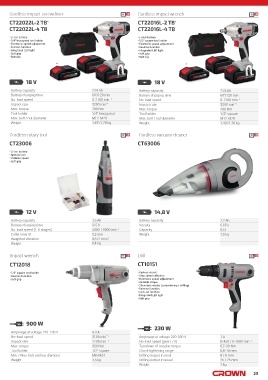

Page 25 - CROWN_catalog_CAN_October_2021-22

Cordless impact screwdriver Cordless impact wrench
CT22022L-2 TB CT22016L-2 TB
CT22022L-4 TB CT22016L-4 TB
• Li-Ion battery • Li-Ion battery
• 1/4" hexagonal tool holder • 1/2" square tool holder
• Electronic speed adjustment • Electronic speed adjustment
• Reverse function • Reverse function
• Integrated LED light • Integrated LED light
• Soft grip • Soft grip
• Belt clip • Belt clip

18 V 18 V

*
*
Battery capacity 2 /4 Ah Battery capacity 2 /4 Ah
*
Battery charging time 60 /120 min Battery charging time 60 /120 min
*
No-load speed 0-2100 minˉ¹ No-load speed 0-2100 minˉ¹
Impact rate 3200 minˉ¹ Impact rate 3200 minˉ¹
Max. torque 280 Nm Max. torque 280 Nm
Tool holder 1/4" hexagonal Tool holder 1/2" square
Max. bolt / nut diameter M12-M20 Max. bolt / nut diameter M12-M20
*
Weight 1,49 /1,78 kg Weight 1,49 /1,78 kg
*
Cordless rotary tool Cordless vacuum cleaner
CT23006 CT63006
• Li-Ion battery
• Spindle lock
• Variable speed
• Soft grip

12 V 14,8 V

Battery capacity 1,5 Ah Battery capacity 2,2 Ah
Battery charging time 3-5 h Vacuity 6 kPa
No-load speed (1-6 stages) 5000-18000 minˉ¹ Capacity 0,5 l
Collet inner Ø 3,2 mm Weight 1,5 kg
Weighted vibration 0,872 m/s2
Weight 0,4 kg

Impact wrench Drill

CT12018 CT10151
• 1/2" square tool holder • Keyless chuck
• Reverse function • Step speed selection
• Soft grip • Electronic speed adjustment
• Variable torque
• 2 function modes (screwdriving / drilling)
• Reverse function
• Lock-on function
• Integrated LED light
• Soft grip

900 W
230 W
Amperage at voltage 220-230 V 4.3 A
No-load speed 2100 minˉ¹ Amperage at voltage 220-230 V 1 A
Impact rate 2700 minˉ¹ No-load speed (gear I / II) 0-450 / 0-1600 minˉ¹
Max. torque 320 Nm Turndown of rotation torque 0,7-30 Nm
Tool holder 1/2" square Chuck tightening range 0,8-10 mm
Min. / Max. bolt and nut diameter M8-M24 Drilling output in steel 8 / 8 mm
Weight 3,5 kg Drilling output in wood 25 / 25 mm
Weight 1 kg

25
