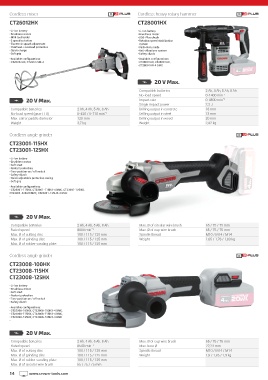

Page 14 - CROWN_catalog_CAN_October_2021-22

Cordless mixer Cordless heavy rotary hammer
CT26012HX CT28001HX
• Li-Ion battery • Li-Ion battery
• Brushless motor • Brushless motor
• M14 tool holder • SDS-Plus chuck
• 2 speed selection • Rotation speed stabilization
• Electronic speed adjustment system
• Overheat + overload protection • Vario-lock mode
• Quick charge • Anti-vibrations system
• Soft grip • Safety clutch
• Available configurations: • Available configurations:
• CT26012HX, CT26012HX-4 • CT28001HX, CT28001HX ,
• CT28001HX-4 BMC

20 V Max.

Compatible batteries 2 Ah, 4 Ah, 5 Ah, 8 Ah
No-load speed 0-1400 minˉ¹
20 V Max. Impact rate 0-4500 minˉ¹
Single impact power 2,3 J
Compatible batteries 2 Ah, 4 Ah, 5 Ah, 8 Ah Drilling output in concrete 18 mm
No-load speed (gear I / II) 0-420 / 0-710 minˉ¹ Drilling output in steel 13 mm
Max. stirrer paddle diameter 120 mm Drilling output in wood 20 mm
Weight 3,7 kg Weight 2,42 kg

Cordless angle grinder
CT23001-115HX
CT23001-125HX

• Li-Ion battery
• Brushless motor
• Soft start
• Restart protection
• Two-position on / off switch
• Safety clutch
• Quick adjustable protective casing
• Soft grip
• Available configurations:
• CT23001-115HX, CT23001-115HX-4 BMC, CT23001-125HX,
CT23001-125HX BMC, CT23001-125HX-4 BMC
•

20 V Max.
Compatible batteries 2 Ah, 4 Ah, 5 Ah, 8 Ah Max. Ø of circular wire brush 65 / 75 / 75 mm
Rated speed 8000 minˉ¹ Max. Ø of cup wire brush 65 / 75 / 75 mm
Max. Ø of cutting disc 100 / 115 / 125 mm Spindle thread M10 / M14 / M14
Max. Ø of grinding disc 100 / 115 / 125 mm Weight 1,65 / 1,78 / 1,83 kg
Max. Ø of rubber sanding plate 100 / 115 / 125 mm

Cordless angle grinder
CT23008-100HX
CT23008-115HX
CT23008-125HX

• Li-Ion battery
• Brushless motor
• Soft start
• Restart protection
• Two-position on / off switch
• Safety clutch
• Available configurations:
• CT23008-100HX, CT23008-100HX-4 BMC,
• CT23008-115HX, CT23008-115HX-4 BMC,
• CT23008-125HX, CT23008-125HX-4 BMC
•

20 V Max.
Compatible batteries 2 Ah, 4 Ah, 5 Ah, 8 Ah Max. Ø of cup wire brush 65 / 75 / 75 mm
Rated speed 8500 minˉ¹ Max. bore Ø 22,23 mm
Max. Ø of cutting disc 100 / 115 / 125 mm Spindle thread M10 / M14 / M14
Max. Ø of grinding disc 100 / 115 / 125 mm Weight 1,8 / 1,85 / 1,9 kg
Max. Ø of rubber sanding plate 100 / 115 / 125 mm
Max. Ø of circular wire brush 65 / 75 / 75 mm
