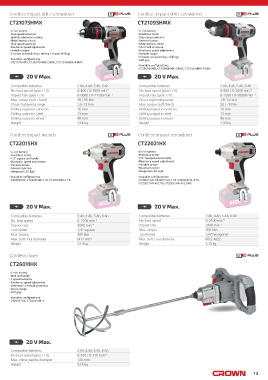

Page 13 - CROWN_catalog_CAN_October_2021-22
P. 13
Cordless impact drill / screwdriver Cordless impact drill / screwdriver
CT21075HMX CT21093HMX
• Li-Ion battery • Li-Ion battery
• Step speed selection • Brushless motor
• Spindle automatic locking • Step speed selection
• Metal keyless chuck • Reverse fuction
• Step speed selection • Metal keyless chuck
• Electronic speed adjustment • Shaft lock structure
• Variable torque • Electronic speed adjustment
• 3 modes (screwdriving / drilling / impact drilling) • Variable torque
• 2 modes (screwdriving / drilling)
• Available configurations: • Soft grip
• CT21075HMX, CT21075HMX-2 BMC, CT21075HMX-4 BMC
• Available configurations:
• CT21093HMX, CT21093HMX-2 BMC, CT21093HMX-4 BMC
20 V Max. 20 V Max.
Compatible batteries 2 Ah, 4 Ah, 5 Ah, 8 Ah Compatible batteries 2 Ah, 4 Ah, 5 Ah, 8 Ah
No-load speed (gear I / II) 0-400 / 0-1500 minˉ¹ No-load speed (gear I / II) 0-500 / 0-2000 minˉ¹
Impact rate (gear I / II) 0-6000 / 0-22500 minˉ¹ Impact rate (gear I / II) 0-7500 / 0-30000 minˉ¹
Max. torque (soft / hard) 45 / 55 Nm Chuck tightening range 1,5-13 mm
Chuck tightening range 1,5-13 mm Max. torque (soft/hard) 50 / 75 Nm
Drilling output in concrete 16 mm Drilling output in concrete 16 mm
Drilling output in steel 13 mm Drilling output in steel 13 mm
Drilling output in wood 40 mm Drilling output in wood 45 mm
Weight 1,24 kg Weight 1,39 kg
Cordless impact wrench Cordless impact screwdriver
CT22015HX CT22021HX
• Li-Ion battery • Li-Ion battery
• Brushless motor • Brushless motor
• 1/2" square tool holder • 1/4" hexagonal tool holder
• Electronic speed adjustment • Electronic speed adjustment
• Variable torque • Variable torque
• Reverse function • Reverse function
• Integrated LED light • Integrated LED light
• Available configurations: • Available configurations:
• CT22015HX, CT22015HX-2 TB, CT22015HX-4 TB • CT22021HX, CT22021HX-2 TB, CT22021HX-4 TB,
• CT22021HX-4C2 TB, CT22021HX-4C2 BMC
20 V Max. 20 V Max.
Compatible batteries 2 Ah, 4 Ah, 5 Ah, 8 Ah Compatible batteries 2 Ah, 4 Ah, 5 Ah, 8 Ah
No-load speed 0-2100 minˉ¹ No-load speed 0-2100 minˉ¹
Impact rate 3200 minˉ¹ Impact rate 3200 minˉ¹
Tool holder 1/2" square Max. torque 300 Nm
Max. torque 300 Nm Tool holder 1/4" hexagonal
Max. bolt / nut diameter M12-M22 Max. bolt / nut diameter M12-M22
Weight 1,14 kg Weight 1,13 kg
Cordless mixer
CT26011HX
• Li-Ion battery
• M14 tool holder
• 2 speed selection
• Electronic speed adjustment
• Overheat + overload protection
• Quick charge
• Soft grip
• Available configurations:
• CT26011HX, CT26011HX-4
20 V Max.
Compatible batteries 2 Ah, 4 Ah, 5 Ah, 8 Ah
No-load speed (gear I / II) 0-510 / 0-710 minˉ¹
Max. stirrer paddle diameter 120 mm
Weight 3,18 kg
13
